    solar panel hydro turbine

China Best Products Wind turbine generators

H series horizontal wind turbine generators up to 100kw with CE

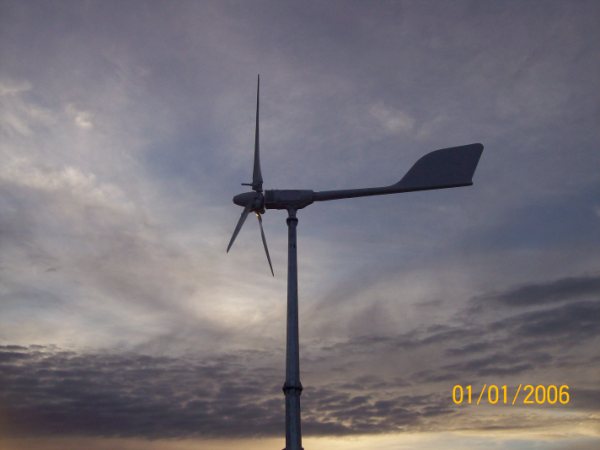

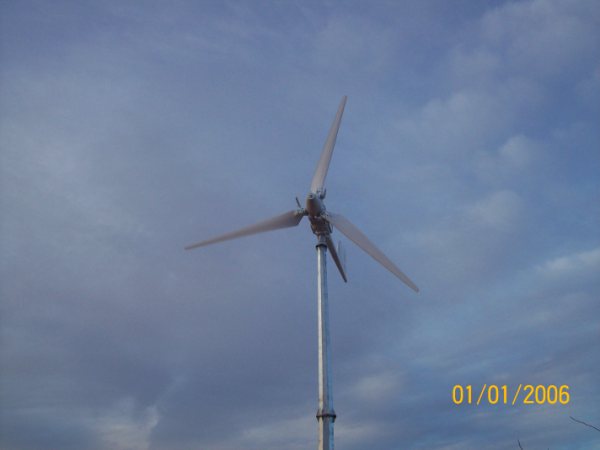

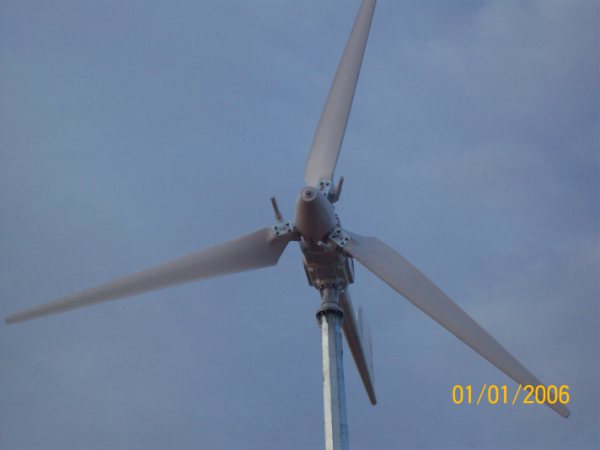

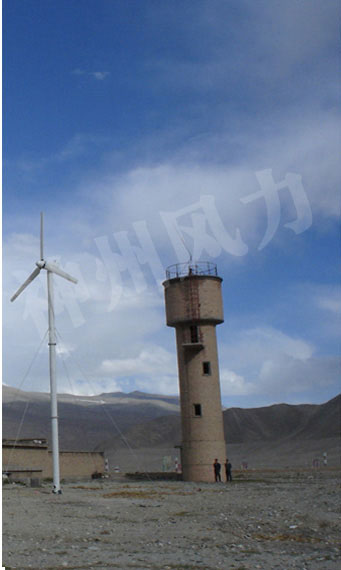

5kw with pitch 5kw with pitch 5kw with pitch

(ISO9001:2000, ISO9002, and CE certified for the generators, with tower, off grid controller, and off grid inverter, no battery) retail price in US dollar, ship to warehouse on our list

We have 5kw with pitch control, 10kw operating demo in Essex California, please call 519-496-3078 for details, 2 used 10kw off grid wind turbines for sale, call 702-206-0261 for pricing.

Model rated power/rotor RPM/Blade diameter/battery bank DC input tower(m/ft) recommended battery bank (not included) off-grid single phase system (USD) weight(kg/lbs) packing(m3) units in 20ft/40ft container off-grid inverter(included)(USD)   guide wire tower(included)(USD) upgrade to monopole upgrade to 3 phase inverter upgrade to Windy Boy grid tied inverter(USD)   add extra set of  blades(USD)
HA5K 5KW pitch/300rpm/5.2m/240V 8/26 12V 200AH x 20 14,133 1200/2640 6.6 5/10 1,911 1,765 tilt up   5,750 712
HA10K   10KW pitch/7.2m/400V 18/60   12V 400AH X 30   29,618   1500/3300 10   3,740   4,390 tilt up     5.750 x 2
HS20K 20KW/90rpm/10m/360V 18/60 12V 400AH x 30 37,241 4907/10796 14.91 2/4 5,000 7,458 tilt 8,070 5,833 5,750 x 4 2,199
HS30K 30KW/75rpm/12m/360V 18/60 12V 400AH x 45 48,873 11095/24409 17 6,700 7,458 tilt 8,070 7,500 5,750 x 5 3,239
HZ50K 50KW/85rpm/13m/540V 20/66 12V 400AH x 90 216,505 15175/33385 84   60,000 15,900(monopole)
HZ100K   100KW/65rpm/20m/540V 30/100   on grid only   486,066   28820/63404 107   258,400 on grid   37,790(monopole)

30% (minimum US$1000) deposit for single unit, and the balance must be paid off before shipping from China.

temperature -40 to 60 deg C or -40 to 140 deg F

Usually we ship out from Shanghai in 20 to 30 days after receiving your payments. We clear customs for USA, and Canada.  GST/HST base on the prices for customers in Canada.

spec for maton 5-10k inverter

spec for new 3kw to 20kw controller



Warranty

6 month parts warranty for controller and inverter, 2 years parts warranty for the generator/tower.

H series large scale wind turbine for land and off shore 750kW to 3MW

By custom design only, please provide your desired capacity, policy of your power company, environment regulations from your area, size of your wind farm, location, height (hypsometric map), wind speed data for one year, temperature,  geological data, aerial photography map of the area, and all the related information.

lead time 6 month estimated

General  HH1M HM1.5M HX2M direct driven HR3M offshore HR3M onshore
Rated power 1000 kW 1500 kw 2000 kw 3000 kW
Power control blade stall Pitch Pitch Pitch
Type 3 blades, up-wind 3 blades, up-wind 3 blades, up-wind 3 blades, up-wind

Cut-in wind speed 3,5 m/s 3 m/s 3 m/s 3.5 m/s
Rated wind speed 14 m/s 10.5 m /s 13 m/s 13 m/s 12.5 m/s
Cut-out wind speed 25 m/s 15 m/s 25 m/s 25 m/s
Design maximum 59,5 m/s 59.5 m/s 70 m/s 70 m/s 59.5 m/s
Classification IEC II A IEC II IEC I-B TC I A TC II A
Operating temperature   -30 to 40   -30 to 40ºC
Rotor diameter 55 m 82.7 m 70.65 m 91.6 m 101.19 m



wind speed in Canada

wind speed in USA

US 2.5% 85016100.--AC generators (alternators) of an output not exceeding 75 kVA--01/01/2002

85023100 wind powered generator 2.5% for USA

85016200.--AC generators (alternators) of an output exceeding 75 kVA but not exceeding 375 kVA--01/01/2004
85016300.--AC generators (alternators) of an output exceeding 375 kVA
